Window Marking

RETAINAGROUP - STENCIL/FLUID SYSTEM

A simple safe and effective system for marking a vehicle's glass at production plant, import/export centre or dealership.

Marking

  • Character size 5 to 8 mm.
  • Fluid - Proprietary.
  • Time for fluid to mark - 90 seconds.
  • Total marking time per vehicle-circa 5 minutes for 6 windows.
  • Depth of mark - 0.1 mm (Conforms to British Standard).
  • Stencils can be pre-cut with a Logo, unique code and either the 24/7 telephone number of the ISR or www.ISRCodecheck.com, or cut to manufacturer's specific requirements - e.g. the VIN.

Handling

  • Easy to apply - operators can be trained in minutes. No capital equipment required.
  • Safe to use - no special clothing, ventilation or handling required.
  • Will not damage other parts of the vehicle.
  • Neutralising agent is water.
  • MSDS Sheets available on request.

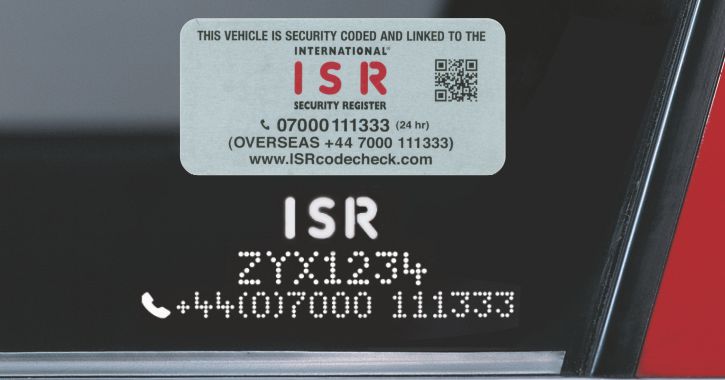

Warning decal / Manufacturer's logo
(if required) & 24/7 ISR number

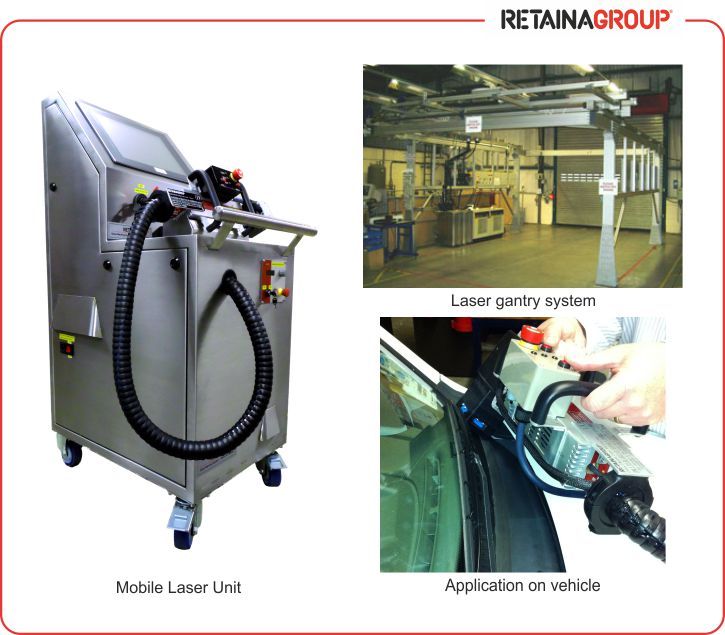

RETAINAGROUP - LASER MARKING SYSTEMS

Two options are available – a drive through gantry system and a mobile unit. Both are simple and safe to operate, requiring no protective clothing.

Marking

  • Average time to complete a single etch is 0.5 seconds.
  • An experienced operator can etch 6 windows in 35 seconds.
  • Size, content and depth of mark can be tailored to suit customer requirements (maximum size of mark 80 mm x 80 mm).
  • Automatic identification of vehicles before they are etched avoids marking errors.
  • In addition to windows, the system can mark many of the component parts recommended in Thatcham NVSA4A.

For technical specifications:

Mobile unit & drive through gantry system



Our products and the ISR are fully accredited to the appropriate Standards. Please click here to visit our Accreditation section.
If you are looking for innovative, cost effective solutions to deter and detect crime please call us on + 44 (0)1233 504162 or email general.sales@retainagroup.com
